Multi-Size Inflatable Pipe Plugs / Flow Stoppers

Multisize inflatable pipe plugs / flow stoppers multisize inflatable pipe plugs / flow stoppers



COB Industries now offers MultiSize Inflatable pipe plugs / Stoppers in a larger range of sizes with the NEW MLS (Stoppers) and FXBP (Bypass Plug) models. Multisize inflatable pipe plugs and Flexible bypass pipe plugs offer versatility, flexibility and durability with reinforced ozone protected natural rubber construction*. These plugs are extremely popular in all types of construction, water and sewer, and pipeline maintenance applications.

multisize flexible pipe plugs



COB MLS and FXBP Plugs are made in the USA and usually in stock up to 60”, with larger sizes usually available within a week or two. *Also available in Nitrile and Neoprene for specialty applications.



COB Advantages
  • Used as a block plug, a water/air test plug, or leak locating back plug
  • Can be floated down pipe and stopped at desired location to prevent going down a manhole for installation or removal.
  • Grows shorter as it inflates to put less stress on plug.



Multi Sized Inflatable Pipe Plugs / Stoppers
Part # Range Inches Min
Inches		 Max Inches Infl Pressure PSI Back Pressure PSI Length Inches Weight (Lbs) Bypass inches
MLS 1.5/2.8 (35/70) 1.4 – 2.8 1.3 2.8 45 34 8.3 1 N/A
MLS 02/04 (50/100) 2 – 4 1.8 4 45 34 7.9 1.1 N/A
MLS 03/06 (70/150) 3 – 6 2.6 6 45 34 14.6 1.4 N/A
MLS 04/08 (100/200) 4 – 8 3.5 8 45 19 21.65 5 N/A
MLS 06/12 (150/300) 6 – 12 5.5 12 45 19 21.65 8 N/A
MLS 08/16 (200/400) 8 – 16 7.3 16 45 19 25.6 9 N/A
MLS 12/24 (300/600) 12 – 24 11.3 24 45 19 33.5 21 N/A
MLS 15/30 (375/750) 15 – 30 14.2 30 45 19 39.4 35 N/A
MLS 20/40 (500/1000) 20 – 40 19.1 40 45 14.5 45.3 51 N/A
MLS 24/48 (600/1200) 24 – 48 23 48 45 14.5 51.2 93 N/A
multisize flexible bypass pipe plugs
Multi Sized Inflatable Bypass Pipe Plugs
Part # Range Inches Min
Inches		 Max Inches Infl Pressure PSI Back Pressure PSI Length Inches Weight (Lbs) Bypass inches
FXBP 02/04 (50/100) 2 – 4 1.8 4 30 26 12.9 2.6 1/2 or 1
FXBP 03/06 70/150 3 – 6 2.6 6 30 26 15.75 3.3 1-1/2
FXBP 04/08 100/200 4 – 8 3.5 8 30 11 19.7 5.7 2
FXBP 06/12 150/300 6 – 12 5.5 12 30 11.5 22.85 9.9 2
FXBP 08/16 200/400 8 – 16 7.3 16 30 11.5 26.8 18.7 2
FXBP 12/24 300/600 12 – 24 11.3 24 30 11.5 33.5 41 3
FXBP 15/30 375/750 15 – 30 14.2 30 30 14.5 39.4 81 4
FXBP 20/40 500/1000 20 – 40 19.1 40 30 14.5 47.5 121 4
FXBP 24/48 600/1200 24 – 48 23 48 30 13 55.2 132 4
FxBP 30/60 30 – 60 26 60 30 13 102.5 253 6
FXBP 40/80 40 – 80 39.5 80 30 13 122 520 6
***MultiSize Inflatable Pipe Plugs are also available in a more chemical resistant nitrile rubber quality



Custom Multi-Size Inflatable stoppers

We can design the multi-size inflatable stoppers to your application. Special lengths, expansion ranges, bypass length and diameter.

  • FXBP07/09-SP
  • FXBP07/09-SP

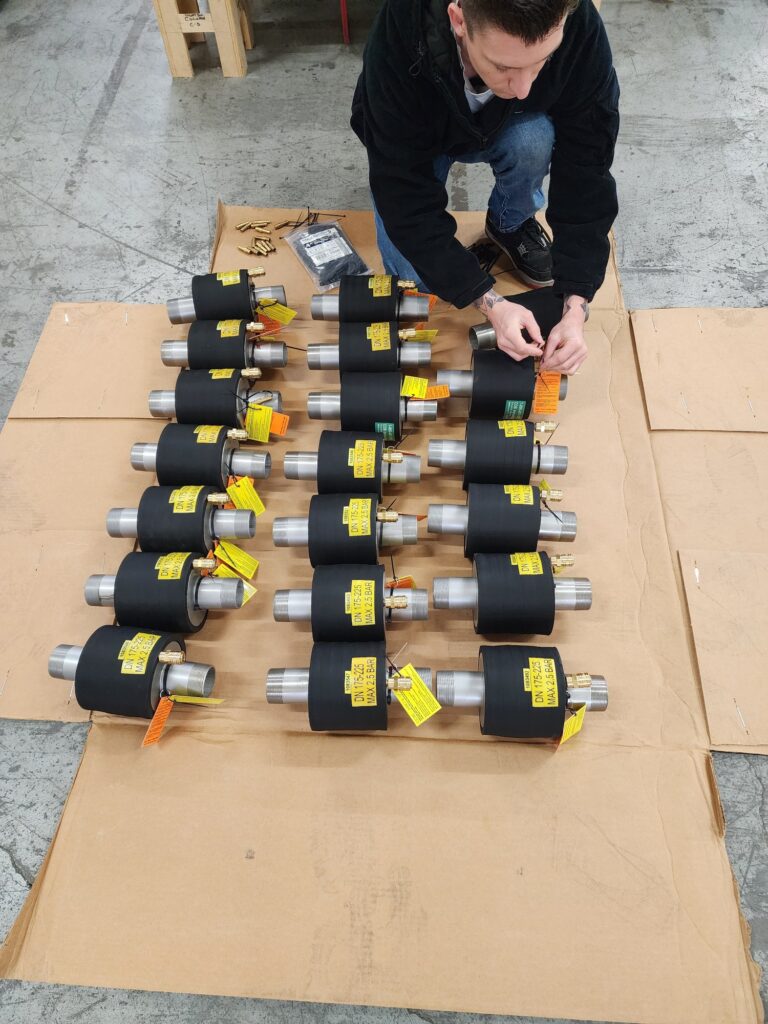

Custom FXBP07/09-SP these are special order plugs with a 5″ wide inflatable bladder that has a 7 to 9 inch expansion range. They also have a custom 2″ NPT solid bypass. The customer requested the bypass extend 3″ past the bladder on both ends.
