Unique 10 ppm Color Touch Screen Monitor!

The PurgEye® 600 Computerized Color Touch Screen Weld Purge Monitor® measuring from atmospheric oxygen levels down to 1 ppm. The ‘All in One’ instrument is now complete with PurgeNet™, allowing control of automatic welding equipment with other accessories including visual on/off light for remote viewing, a dew point meter and audible alarm.

This unique monitor has a fast response long life sensor and upper and lower ppm levels to trigger alarms. Choose the PurgEye® 600 for the best ‘Eye’ on your Purge.

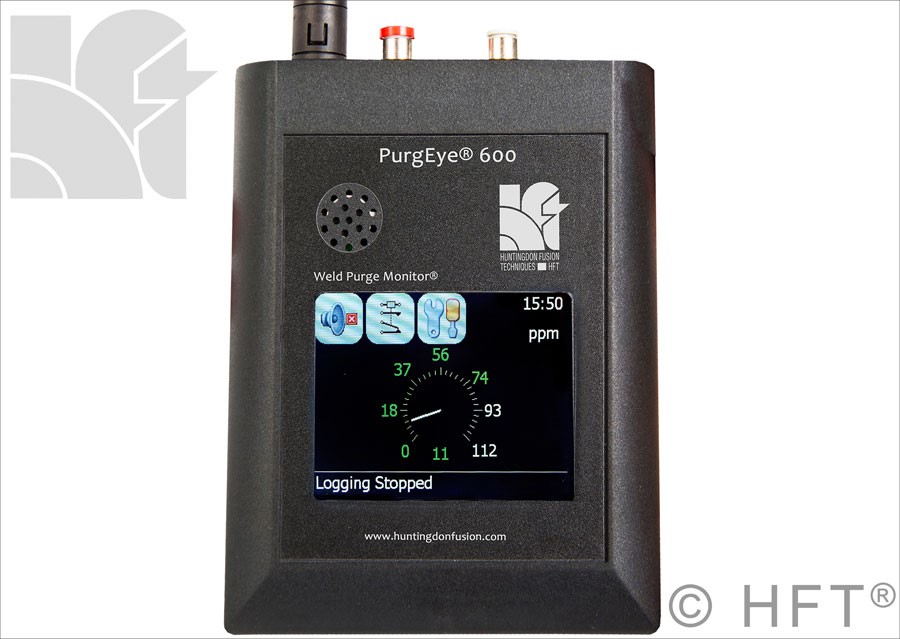

PurgEye 600 Weld Purge Monitor
PurgEye 600 Weld Purge Monitor

The Argweld® PurgEye® 600 Weld Purge Monitor® is complete with PurgeLog™, has a USB connection, data logging capability allowing the operator ease of data transfer without the need for a computer connection, includes an internal sampling pump and a switching capacity for external devices.

Our Weld Purge Monitors® have been specifically designed for excellent weld purging conditions creating the best oxide-free zero color welds. Oxygen monitors for welding purposes, including gas analyzers (gas analyzers), oxygen instruments or oxygen indicators are not enough to provide good clean welds.

Accurate Readings down to 10 ppm

PurgEye 600 Weld Purge Monitor
PurgEye 600 Weld Purge Monitor

The unique PurgEye® 600 Weld Purge Monitor® has broken all technological boundaries and will read from atmospheric (20.94%) right down to 1 ppm (accurate to 10 ppm).

With the ever more stringent quality control standards being applied to the welding of titanium, nickel alloys, stainless and duplex steels in aerospace, offshore, pharmaceutical, food, beverage, semiconductor, bio-technical fields etc., it has been necessary to develop an attractively priced Weld Purge Monitor® that will read from atmospheric oxygen levels down to 10 ppm.

This color touch screen ‘State of the Art’ instrument is the first to be available in the marketplace to accurately read oxygen levels in the weld environment from atmosphere (20.94%) down to 10 ppm in a single instrument.

Now complete with PurgeNet™, allowing control of automatic welding equipment with other accessories including visual on/off light for remote viewing, a dew point meter and audible alarm.

The Argweld® PurgEye® 600 has PurgeLog™, data logging capability that allows the operator to download data via a USB port onto a memory stick obviating the need of a computer connection.

The color touch screen with graphics allows the user to pre-set upper and lower ppm levels of their choice to trigger alarms.

Not only have we been able to achieve these terrific World beating features, but in addition, we have included an internal sampling pump, switching capacity for external devices and a long-life sensor.

All at a stunningly attractive price for this single wide range instrument.

Now Complete with PurgeNet™

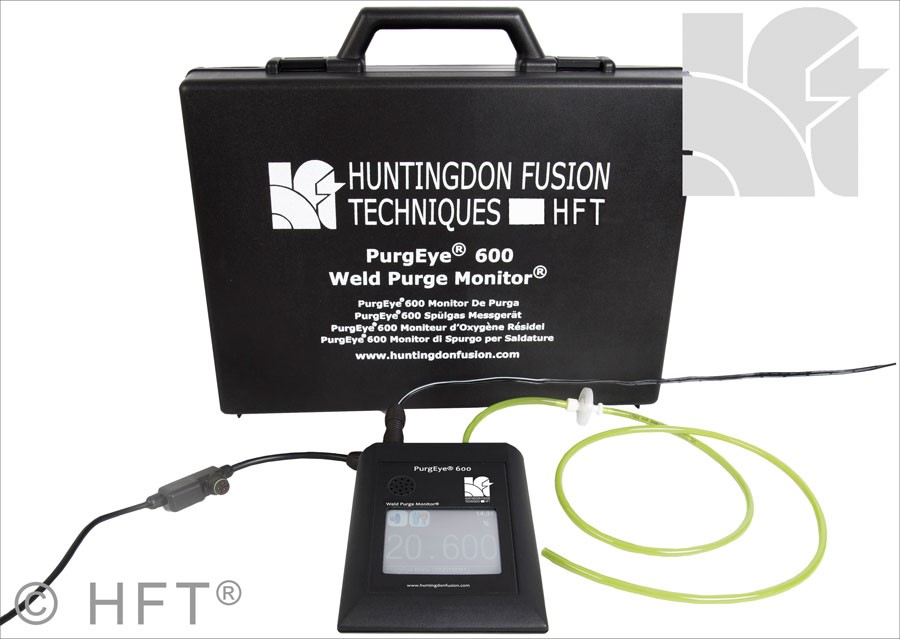

PurgEye 600 Weld Purge Monitor
PurgEye 600 Weld Purge Monitor

The Argweld® PurgEye® 600 Weld Purge Monitor® offers several great features:

The PurgEye® 600 now comes complete with PurgeNet™, which controls all Automatic Welding Systems as well as Orbital Welders, causing them to switch on and off for example when oxygen level rises too high or falls to low.

Full range measurement from atmosphere (20.94%) to 1 ppm (accurate to 10 ppm) using long life sensor technology.

Readings indicated as a percentage or in ppm.

Large 3.2″ (81 mm) fully computerized color touch screen with on-screen graph of the current weld.

Internal sampling pump with gas filtration.

State of the art circuitry providing stable readings.

14W-PurgEye600-WeldPurgeMonitor

Real time clock to date stamp Quality Control records.

The color touch screen with graphics allows the user to set upper and lower ppm levels of their choice to trigger alarms.

PurgeLog™ data logging capability with USB for easy transfer of data logging and weld certification for Quality Control purposes.

No more wet cells to keep replacing and re-calibrating.

Quick fit and quick disconnect purge tube fittings.

Stylish desktop model.

Power from 110 / 230 V AC single phase supply.

Highly improved shielding against all sources of HF, RF and EMF radiation.

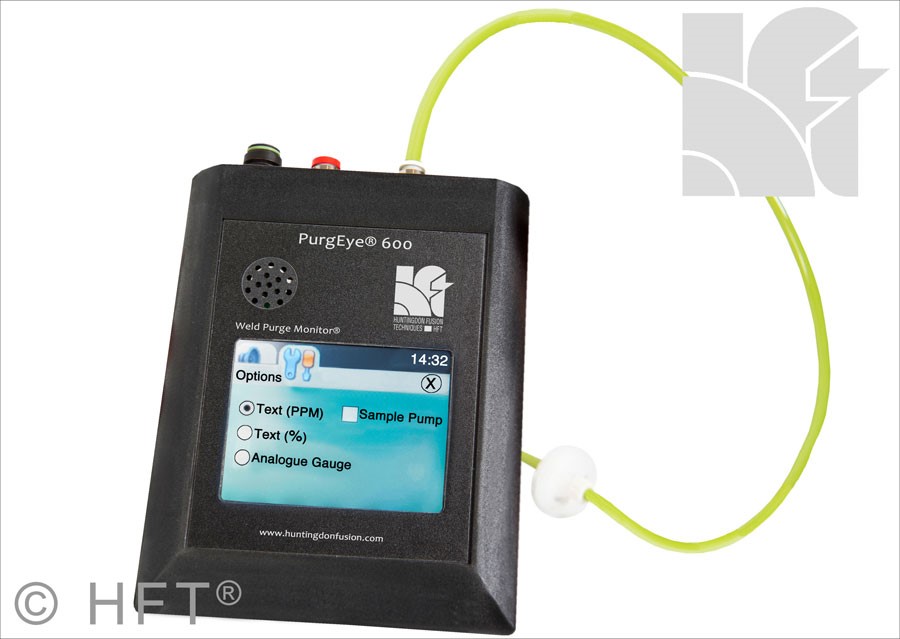

PurgEye 600 Weld Purge Monitor
PurgEye 600 Weld Purge Monitor

A unique, fast response, long life sensor with little to no maintenance requirement.

The recording and auditing capabilities of the HFT® Family Range of Weld Purge Monitors® are considered vital to the tube and pipe sector where traceability is now becoming a critical issue. PurgeLog™ software package is included for computer interfacing, data acquisition, storage and printing of results and graphs for Quality Management purposes.

The instrument is small, lightweight and priced economically when compared with analytical measuring equipment.

Weld Start/Stop Facility.

The PurgEye® 600 Weld Purge Monitor® has been purpose designed and developed for the joining of super critical welds.

It is ideal for use during welding of orbital tube and pipe welds and also with chamber welding of titanium and other reactive alloy components and materials.

Manufactured to ISO 9000 Quality Standards.

This unique Argweld® PurgEye® 600 Weld Purge Monitor® has broken all technological boundaries and will read from 20.94% oxygen down to 1 ppm.

At last, a computerized color touch screen state of the art instrument to accurately read oxygen levels in the welding environment from atmosphere (20.94%) down to 10 ppm.

With PurgeLog™ Data Logging Software

PurgEye 600 Weld Purge Monitor
PurgEye 600 Weld Purge Monitor

Operating Voltage 110 /230 V single phase 50 / 60 Hz, the unit uses an external 12-volt PSU with an input voltage range of 90 to 260 V AC.

PurgeNet™ to provide the control of automatic welding systems via one of its accessories switching on and off according to oxygen levels.

USB port for computer data collection.

PurgeLog™ Data Logging Software. PurgeLog™ Data Logging Software requires a PC running Microsoft® Windows for recording and auditing where traceability is critical.

User interface for external alarm, high/low ppm settings, on/off welder switching etc.

Facility for readings in percentage and ppm.

Instrument dimensions: 150 x 90 x 170 mm.

Power consumption 18 W.

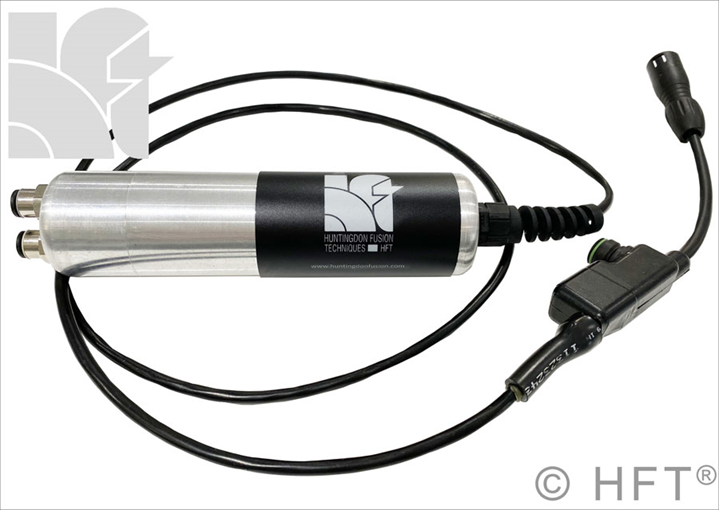

Dew Point Sensor(optional)

Dew Point Monitor
Dew Point Monitor

During purging welders need to measure the oxygen content but also need to measure the ‘dew point’.

The dewpoint is the temperature where condensation begins, and water will condense on the material being welded. This can affect the weld properties significantly.

We have recently added a Dew Point Sensor to our range that can be used in conjunction with our range of 10 ppm Weld Purge Monitors®, so rather than purchasing a separate, expensive Dew Point Meter, HFT®’s Dew Point Sensor that can be connected to the Weld Purge Monitor® via the PurgeNet™ lead.

The dew point sensor is designed to fit any of our Weld Purge Monitors® that read down to 1ppm:

– PurgEye® 200

– PurgEye® Desk

– PurgEye® 600

– PurgEye® 1000

– PurgEye® Site
